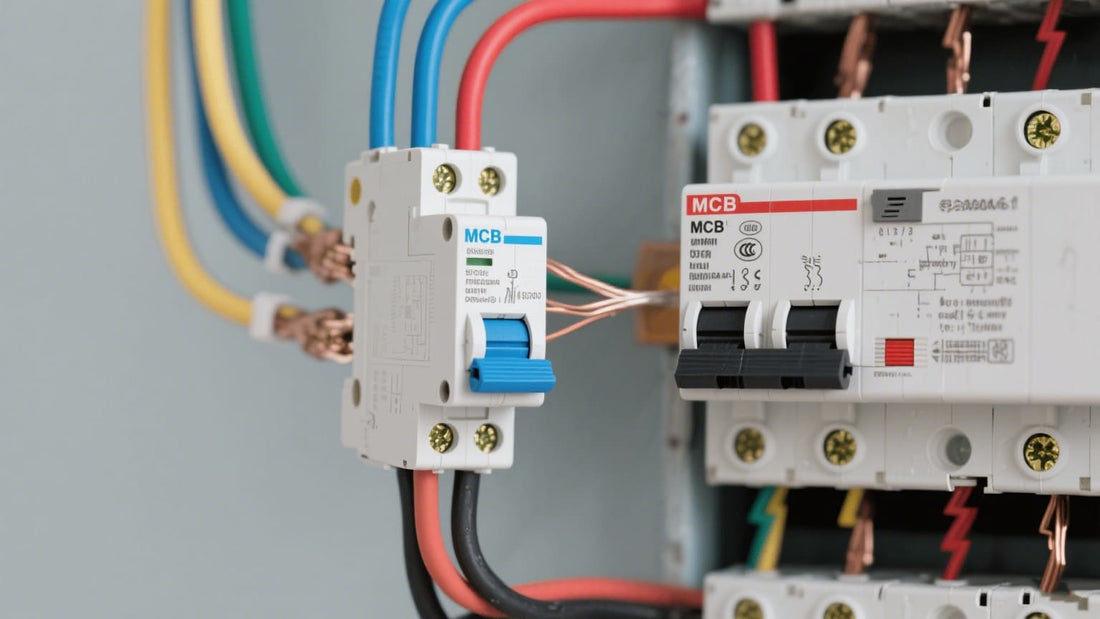

What is a Circuit Breaker? Everything You Need to Know

Bijli ka koi masla hua, aur DB board se ek switch trip ho gaya. Sound familiar? That little device that saved your wiring — that's a circuit breaker. But most Pakistanis don't actually know what it is, how it works, or why it matters for their family's safety.

This guide explains everything about circuit breakers in plain, simple language — no engineering degree required. Whether you're a homeowner, a student, or someone building a new house, by the end of this article, you'll know exactly what a circuit breaker is, the different types available in Pakistan, and which one you need for each part of your home.

A circuit breaker is an automatic electrical safety switch that protects your home's wiring and appliances from damage caused by too much electricity. When it detects a fault — such as an overload or a short circuit — it instantly cuts off the power to that circuit.

Think of it as a smart, reusable fuse. Like a fuse, it breaks the circuit when something goes wrong. But unlike a fuse, which burns out and must be replaced, a circuit breaker simply trips (switches off) and can be reset manually — usually by flicking a lever back to the ON position.

In Pakistani homes, circuit breakers are found inside the DB (Distribution Board) — the metal or plastic box on your wall, usually in the lounge, corridor, or utility room, where all your home's electrical circuits are controlled from one central point.



💡  Simple Definition A circuit breaker = an automatic safety switch that turns itself off when electricity gets too dangerous, and can be switched back on once the problem is fixed.



Pakistan's electrical system presents unique challenges that make circuit breakers not just useful — but absolutely essential:

Voltage Fluctuations

Pakistan's grid voltage regularly swings above and below the standard 220V — especially during peak hours or when power is restored after load shedding. These surges can damage appliances and overheat wiring. A properly-rated circuit breaker trips before the damage reaches your TV, fridge, or AC.

Overloading — Too Many Appliances at Once

Pakistani homes often run an AC, geyser, washing machine, refrigerator, and multiple fans simultaneously. This draws far more current than a single circuit can safely handle. Without a circuit breaker, the wiring inside your walls overheats, the insulation melts, and you get an electrical fire hidden inside your walls — completely invisible until it's too late.

Short Circuits — Wiring Faults

Over time, wiring in Pakistani homes deteriorates — especially in older buildings. Rats chew through cables, insulation cracks from heat, or wires are badly installed. When a live wire touches a neutral or earth wire, it creates a short circuit — a massive surge of current in a fraction of a second. Without a circuit breaker, this melts the wire and can start a fire. With one, the breaker trips in milliseconds.

Electric Shock — Near Water

Pakistan's bathrooms and kitchens are high-risk zones. A special type of circuit breaker called an ELCB (Earth Leakage Circuit Breaker) detects even tiny amounts of current leaking to earth — and trips the circuit before that current passes through a person's body. This is life-saving technology.



🛒  Shop Clopal Circuit Breakers — Pakistan MCBs, ELCBs, RCBOs, and Distribution Boxes. Rated for Pakistan's voltage. Trusted by electricians nationwide. 👉 Browse All Circuit Breakers



Inside every circuit breaker are two key mechanisms — a bimetallic strip for overloads, and an electromagnetic coil for short circuits. Here's exactly what happens when a fault occurs:



1	Electricity Flows Normally	Current passes through the circuit breaker's internal contacts without any interruption. Your lights, appliances and gadgets work as expected.
2	A Fault Occurs	Either too much current flows at once (overload), two wires touch accidentally (short circuit), or current leaks to earth (in ELCBs).
3	The Mechanism Detects the Fault	A bimetallic strip (for overloads) bends from heat — or an electromagnetic coil (for short circuits) pulls a latch — triggering the trip mechanism instantly.
4	The Breaker Trips	The internal contact opens, breaking the circuit. Power stops flowing immediately, protecting your wiring, appliances, and your family.
5	You Reset It Manually	Unlike a fuse that burns out permanently, a circuit breaker is resettable. Flick the switch back to ON after fixing the fault, and power is restored.



The Bimetallic Strip (for Overloads)

This is a thin strip made of two different metals bonded together. When too much current flows through for too long, the strip heats up and bends — because the two metals expand at different rates. When it bends far enough, it releases the trip latch and the breaker switches off. This is a deliberate slow process — it gives appliances time to start up (which draws higher current briefly) without tripping unnecessarily.

The Electromagnetic Coil (for Short Circuits)

A coil of wire inside the breaker becomes an electromagnet when current passes through it. In a short circuit, current spikes to an enormous level in microseconds. This creates a powerful magnetic field that instantly yanks the trip latch open — cutting power in under a millisecond. No human reflex is fast enough to do this manually.



🔑  Key Takeaway A circuit breaker is NOT the same as a fuse. A fuse burns out permanently and must be replaced. A circuit breaker trips, can be investigated, and reset — making it far safer and more cost-effective for your home.



Not all circuit breakers are the same. Different types protect against different faults. Here's a full breakdown of every type used in Pakistani homes, offices, and factories:



Type	Protects Against	Trip Time	Best Use	Clopal
MCB	Overload & Short Circuit	Milliseconds	Wiring & appliances	✅ Available
ELCB / RCD	Electric Shock (leakage)	< 40ms	Bathrooms, outdoors	✅ Available
RCBO	Overload + Shock (both)	< 40ms	Complete protection	✅ Available
MCCB	Heavy overloads	Adjustable	Industrial / commercial	✅ Available
RCCB	Earth leakage only	< 40ms	Whole-house protection	✅ Available



1. MCB — Miniature Circuit Breaker

The most common circuit breaker in Pakistani homes. An MCB protects against two things: overloads (too much current for too long) and short circuits (a sudden massive spike). Every circuit in your home — lighting, fans, AC, kitchen — should have its own MCB in the distribution board.

•       Best for: all general wiring circuits

•       Does NOT protect against electric shock

•       Available ratings: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 63A

•       Single-phase (1P) and three-phase (3P) versions available



⚡  Shop Clopal MCBs — From Rs 280 Single-phase and three-phase MCBs. Available in 6A to 63A ratings. Rated for Pakistan's electrical system. 👉 Shop MCBs



2. ELCB / RCD — Earth Leakage Circuit Breaker

The ELCB is a life-saving device. While an MCB protects your wiring, an ELCB protects people. It continuously monitors the current going in and coming back out of a circuit. If even 30 milliamps of current leaks — for example, through a wet floor, a faulty appliance, or a person's body — it trips the circuit in under 40 milliseconds. That's faster than a heartbeat.

•       Best for: bathrooms, kitchen sockets, outdoor points, anywhere near water

•       Does NOT protect against overloads — use with an MCB

•       30mA sensitivity = life safety standard

•       Mandatory for any electrical point near water in modern buildings

Important: In Pakistan, many older homes still lack ELCB protection in bathrooms. Every year, people die from bathroom electric shocks that an ELCB would have prevented in milliseconds. If your home doesn't have one — install one today.



🛡️  Protect Your Family — Clopal ELCB Range Earth Leakage Circuit Breakers for bathrooms, kitchens, and outdoor areas. Pakistan's safest homes use Clopal ELCBs. 👉 Shop ELCBs



3. RCBO — Residual Current Breaker with Overload

The RCBO is the best of both worlds — it combines an MCB and an ELCB into a single unit. It protects against overloads, short circuits, AND electric shock. Many modern Pakistani homes and apartments are now being built with RCBOs on every circuit for complete protection. Yes, they cost more — but they offer maximum safety without needing two separate devices.

•       Best for: new constructions, bathroom and kitchen circuits, premium homes

•       Replaces both the MCB and ELCB in a single unit

•       Space-saving for distribution boards



4. MCCB — Moulded Case Circuit Breaker

MCCBs are larger, more powerful circuit breakers used for industrial, commercial, and high-load applications — factories, large offices, shopping centres, and commercial buildings. They handle much higher currents than MCBs (typically 100A to 1000A+) and often have adjustable trip settings.

•       Best for: industrial machinery, large commercial buildings, factory panels

•       Not typically used in residential homes

•       Available in 3-phase configurations



5. RCCB — Residual Current Circuit Breaker

An RCCB is similar to an ELCB — it detects earth leakage to protect against shock — but it does NOT protect against overloads. RCCBs are typically installed as a whole-home earth leakage protection device at the main incoming point, while individual MCBs protect each circuit from overloads.

•       Best for: main incoming protection at DB, combined with individual MCBs

•       Most sensitive leakage detection — 10mA to 300mA options

One of the most common questions Pakistani homeowners ask their electricians is: "Kitne amp ka MCB lagaon?" Here's a definitive guide for Pakistani home circuits:



Circuit / Appliance	Recommended Rating	Breaker Type	Clopal?
Lighting (bulbs, fans)	6A	MCB	✅
Power sockets (general use)	16A	MCB	✅
Split AC (1–1.5 ton)	20A–25A	MCB	✅
Geyser / water heater	20A	MCB + ELCB	✅
Washing machine	16A–20A	MCB + ELCB	✅
Main incoming (small home)	32A–40A	RCBO / MCB	✅
Main incoming (large home)	63A	MCCB / RCBO	✅
Bathroom / wet area sockets	Any	ELCB / RCD	✅



⚠️  Important Note for Pakistani Homes These are general guidelines. Your actual requirements depend on the number and type of appliances on each circuit, cable thickness, and your total incoming supply. Always consult a licensed electrician when installing or upgrading your distribution board.



The DB board — that grey or white box on your wall — is the control centre of your entire home's electrical system. Every circuit breaker in your home lives inside this box.

What's Inside a Typical Pakistani DB Board?

•       Main incoming breaker — one large MCB or MCCB that controls all power to your home

•       Individual circuit MCBs — separate breakers for lighting, fans, AC, kitchen, geyser etc.

•       ELCB or RCCB — for whole-home or circuit-specific earth leakage protection

•       Neutral bar — where all neutral wires connect

•       Earth bar — for safety earthing connections

How Many Ways (Slots) Do I Need?

Pakistani homes typically need 6-way to 12-way distribution boards. A rough guide:

•       Small apartment (2-bed): 6-way DB

•       Standard home (3–4 bed): 8-way to 10-way DB

•       Large home (5+ bed, multiple ACs): 12-way to 16-way DB

•       Office / commercial: 16-way or more, sometimes multiple DBs



🗂️  Shop Clopal Distribution Boxes Surface-mount and flush-mount DB boards — 4-way, 6-way, 8-way, 10-way, and 12-way. Compatible with all MCBs and ELCBs. 👉 Shop DB Boards



Circuit breakers last 15–25 years under normal conditions, but Pakistan's harsh electrical environment can shorten that lifespan. Here are warning signs to watch for:

Red Flags — Replace Immediately:

•       Breaker trips repeatedly for no obvious reason (nuisance tripping)

•       Breaker feels hot or warm to the touch

•       You can smell burning or see scorch marks around the DB

•       The breaker won't reset — stays in the tripped position

•       The breaker is physically damaged, cracked, or corroded

•       Lights flicker or appliances act strangely on a circuit



Warning Signs — Have Inspected Soon:

•       Breaker is more than 15–20 years old

•       The DB is an old fuse-type without circuit breakers at all

•       No ELCB in bathroom or kitchen circuits

•       Single main fuse wire protecting the whole home with no individual MCBs



🔧  DIY vs Professional Installation Testing and resetting circuit breakers is safe for homeowners. But installing new breakers, replacing a DB, or adding circuits MUST be done by a qualified electrician. Working on live DB wiring without proper training can be fatal. Hire a licensed electrician — and buy quality Clopal products for them to install.



Q: What is the difference between a fuse and a circuit breaker?

A fuse is a thin wire that melts and burns out when too much current flows — it protects the circuit but must be replaced afterwards. A circuit breaker does the same job automatically but can be reset after tripping. Circuit breakers are faster, more reliable, and far more convenient — which is why they've replaced fuses in all modern homes.

Q: Can I reset my circuit breaker myself?

Yes — resetting a tripped circuit breaker is safe. First, switch off all the appliances on that circuit. Then push the breaker firmly to the OFF position (it may already be in the middle), wait a few seconds, then push it firmly to ON. If it immediately trips again, there is an ongoing fault that needs professional attention.

Q: How do I know which breaker controls which circuit?

Ideally, each breaker in your DB should be labelled — AC bedroom 1, kitchen sockets, lounge lights, etc. If yours aren't labelled, switch each breaker off one at a time and walk around your home to see what loses power. Then label them with a permanent marker or printed labels.

Q: My circuit breaker keeps tripping — what should I do?

First, identify what was running when it tripped. Unplug or switch off all appliances on that circuit. Reset the breaker. Add appliances back one at a time to identify the faulty one. If the breaker trips with nothing plugged in, or immediately after resetting, call an electrician — you may have a wiring fault.

Q: What size MCB do I need for my AC?

For a typical 1-ton split AC in Pakistan: 20A MCB. For a 1.5-ton AC: 20A to 25A MCB. For a 2-ton AC: 25A to 32A MCB. These are general guidelines — check the nameplate on your AC unit for the exact maximum current rating, then size your MCB at 125% of that value.

Q: Is a circuit breaker the same as a safety switch?

Not quite. In Pakistan and internationally, 'circuit breaker' usually refers to an MCB or MCCB that protects wiring from overloads and short circuits. A 'safety switch' usually refers to an ELCB or RCD that protects people from electric shock. Both are important — ideally every home should have both types. Clopal sells both.

Q: Where can I buy quality circuit breakers in Pakistan?

Clopal Electric at clopal.com offers a complete range of MCBs, ELCBs, RCBOs, and distribution boxes — all rated for Pakistan's electrical system. Order online with nationwide delivery and cash on delivery.

Now that you understand circuit breakers, the next step is making sure your home is fully protected. Clopal Electric offers a complete range of electrical safety products — all designed and tested for Pakistan's electrical conditions:

•       MCBs — 6A to 63A, single and three-phase

•       ELCBs — 20A and 40A with 30mA sensitivity

•       RCBOs — combined overload and leakage protection

•       Distribution boxes — 4-way to 12-way, surface and flush mount

•       Switches & Sockets — modular, smart, and industrial

•       LED Lights — energy-saving, load-shedding friendly

•       Smart WiFi Switches — control your home from anywhere

•       Extension Boards — surge-protected with USB charging
