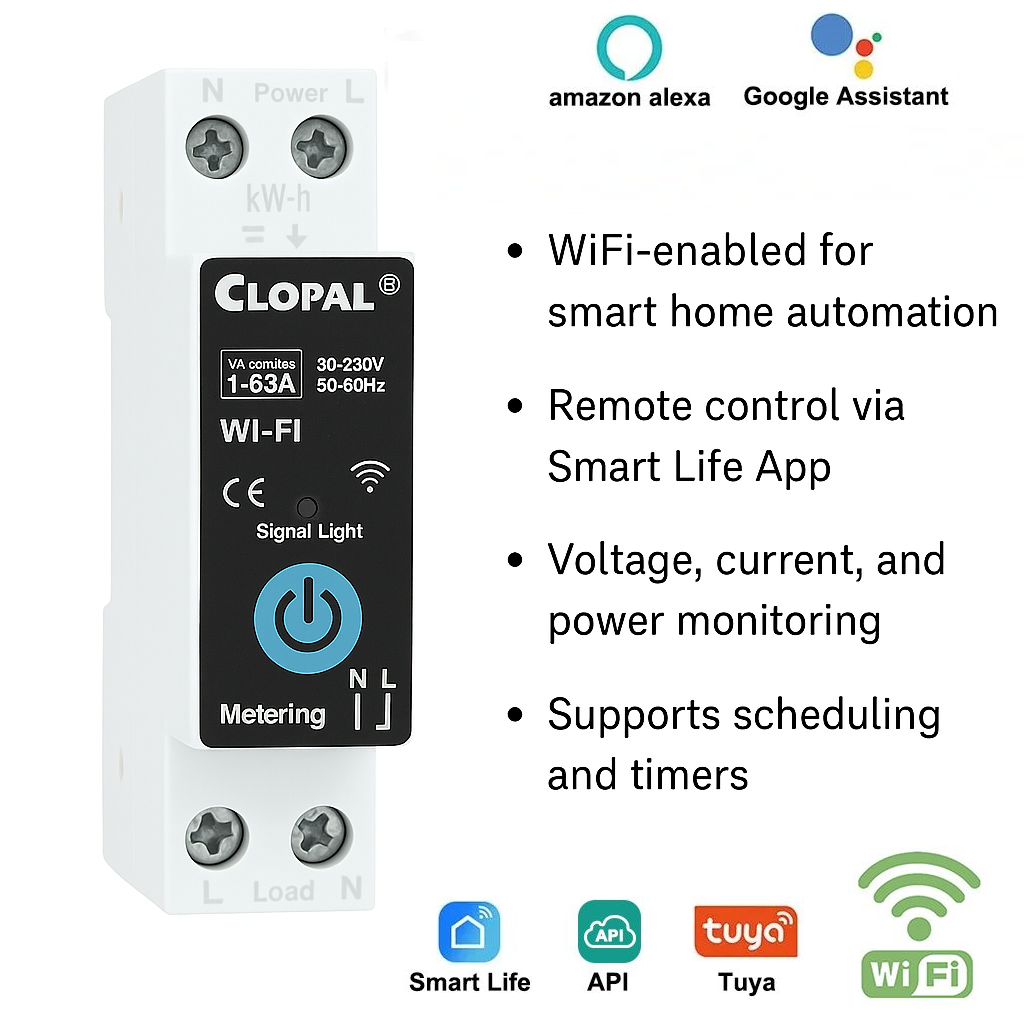

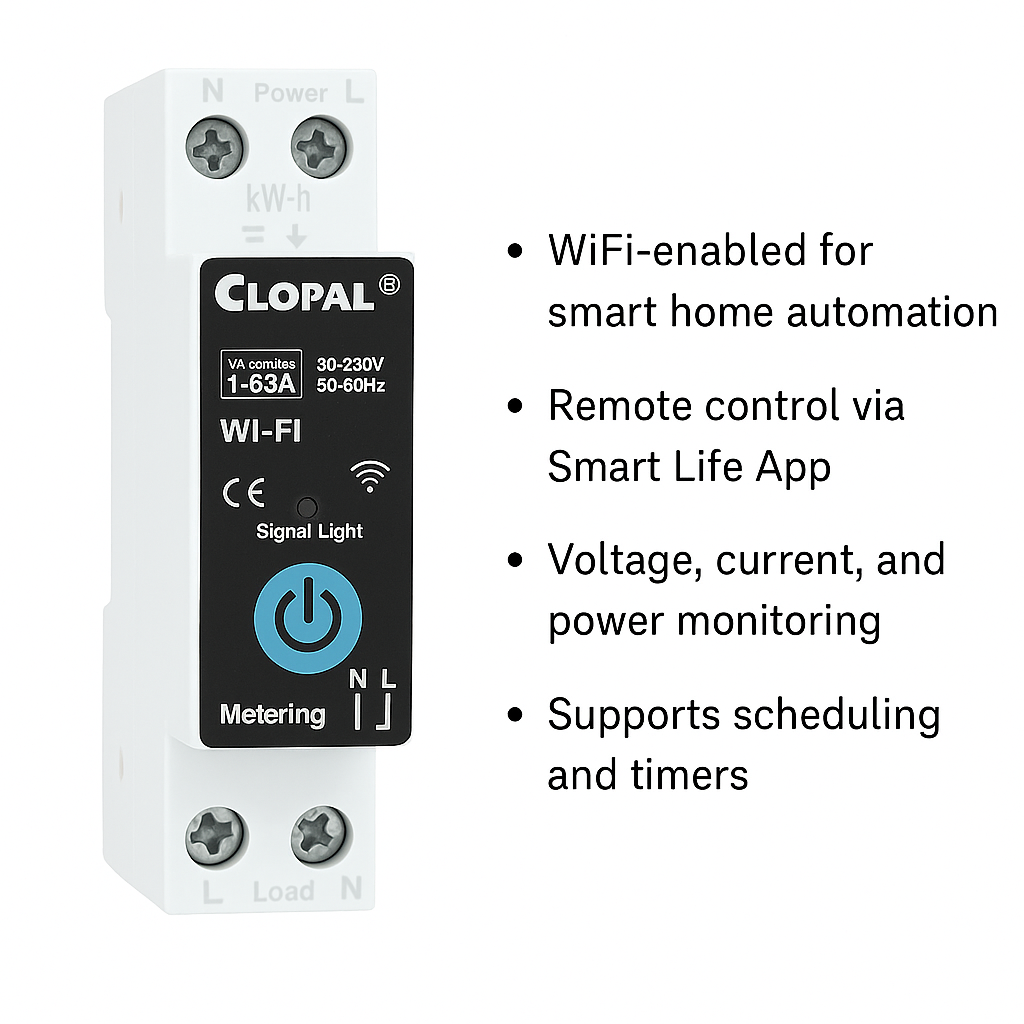

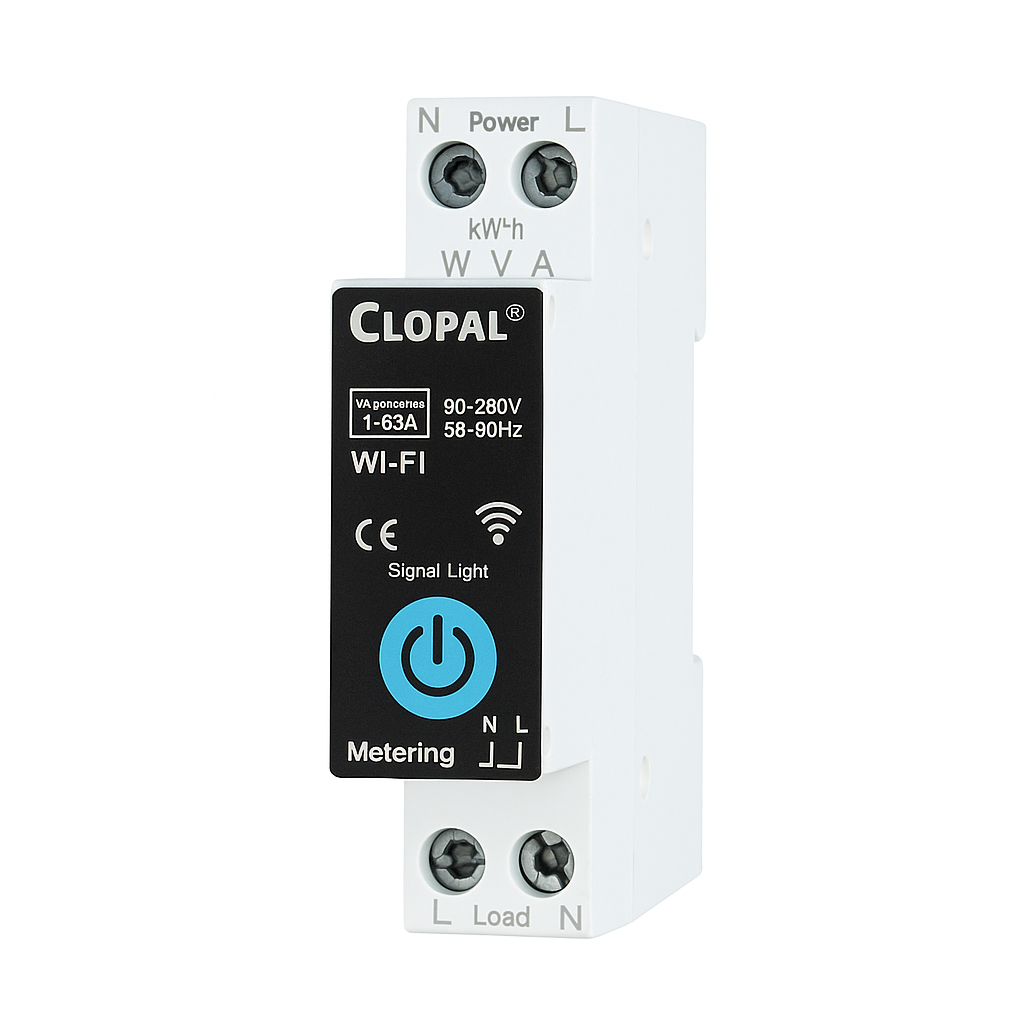

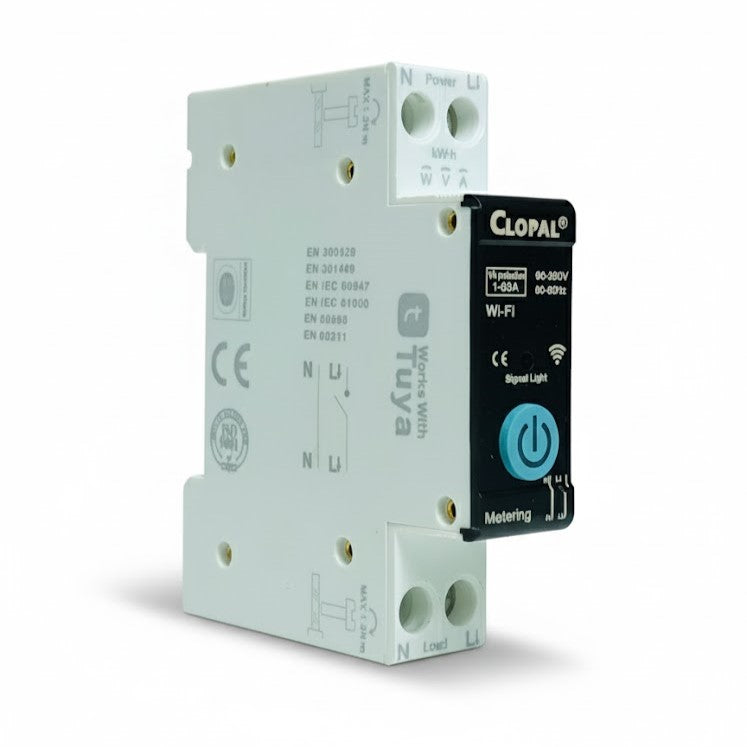

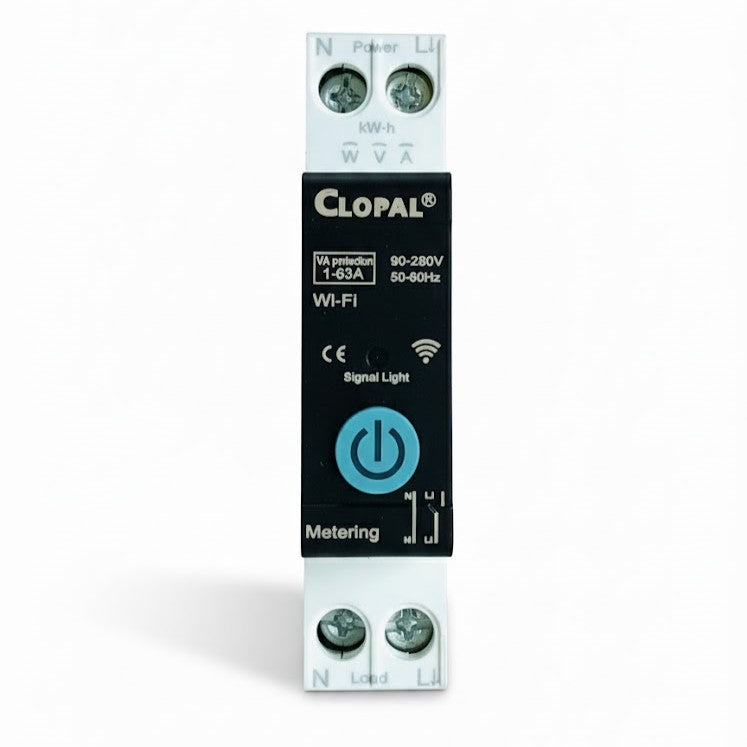

Clopal WIFI Smart Energy Meter Voltage Current Protect Protector Kwh Metering Monitoring Circuit Breaker Timer Relay 1-63A

WiFi Din Rail Switch (Smart Life APP)

Smart Remote Control | Power Monitoring | Automation Ready

Product Description:

The WiFi Din Rail Switch is a smart automation device designed for controlling electrical circuits remotely through the Smart Life App. It allows users to turn ON/OFF connected appliances, monitor real-time power consumption, and set automated schedules—all from anywhere using a smartphone. With easy installation on a standard DIN rail, it’s ideal for smart homes, offices, and industrial energy management.

⚙️ Main Features:

• 🛰️ Remote Control: Switch your appliances ON/OFF anytime through the Smart Life App.

• ⏰ Timing & Scheduling: Set daily or weekly ON/OFF schedules automatically.

• 📊 Power Monitoring (Metering Type): Real-time tracking of voltage, current, and power usage with daily, monthly, and yearly records.

• 🗣️ Voice Control: Compatible with Alexa, Google Assistant, and other smart voice systems.

• 🔄 Countdown & Loop Timer: Automatically control appliances based on preset time loops.

• 👥 Device Sharing: Share device access with family members through the Smart Life App.

⚡ Technical Specifications:

• Protocol: WiFi (2.4GHz)

• Rated Voltage: 100V – 240V AC

• Control Type: Remote + Manual

• Poles: 1P + N (Neutral Pass-through)

• Indicator Light:

  • Steady Blue → Power ON

  • Blue Flashing → Pairing Mode

  • Light OFF → Power OFF

• Installation: Standard DIN Rail Mount

• Available Models:

  • Metering Type – with energy monitoring

  • Non-Metering Type – standard control only

📲 App Setup (Configuration Steps):

1. Wiring: Connect Live wire to L Pole, Neutral wire to N Pole.

2. Power ON: Long press the switch button (5–10 seconds) until blue light flashes.

3. App Connection:

   • Turn ON Bluetooth & WiFi on phone.

   • Open Smart Life App, tap “+ Add Device”.

   • Select WiFi Din Rail Switch, enter WiFi password.

4. Connection Complete: Blue indicator turns steady when successfully connected.

💡 LED Indicator Status:

📉 Live View & Power Monitoring (Metering Type):

Monitor voltage, current, and load power in real time.
Track daily, monthly, and yearly consumption to optimize energy use.

🧩 Applications:

• Smart Homes

• Industrial Panels

• Energy Monitoring Systems

• Smart Lighting and Automation

• Remote Appliance Control
